金纳米棒

首页产品展示无机生物材料棒状金纳米系列

与球形金纳米颗粒相比，棒状金纳米颗粒具有更为特殊的表面等离子共振特性：有横向和纵向两个SPR峰，纵向SPR峰位（从可见区到近红外区）取决于金纳米棒颗粒的长短轴比，通过控制不同长短轴比，可以实现纵向SPR峰位置的人为调控。因此金纳米棒生物探针能与近红外的激发波长相匹配，能使近红外光穿透皮下深层组织，利用超短脉冲红外激光照射下的金纳米棒，实现皮下深层组织的成像和光热治疗。

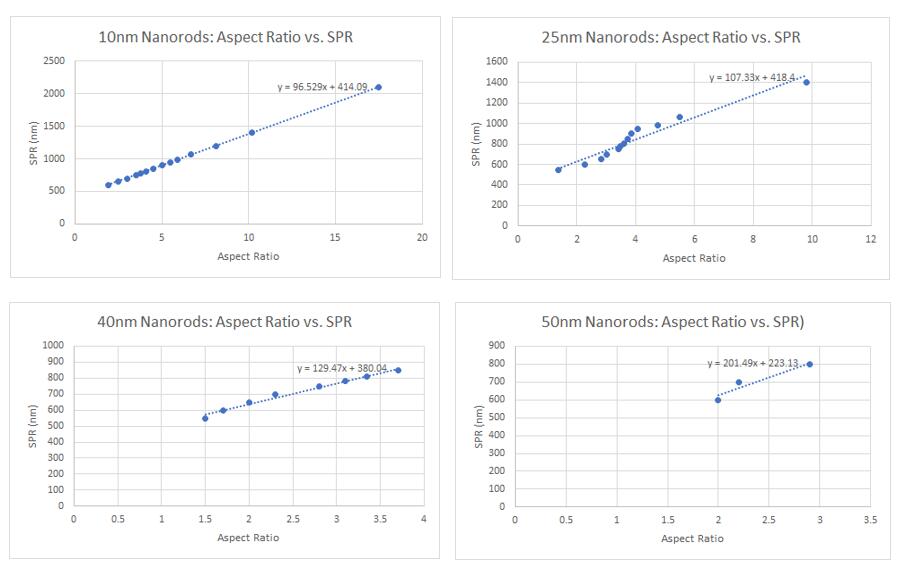

金纳米棒 Aspect Ratio vs. SPR for 10 nm, 25 nm, 40 nm and 50 nm diameter gold nanorods of increasing length

金纳米棒可作为一种药物递送载体，药物能够通过物理吸附或者化学共轭联接在金纳米棒表面，并能够保持药物的活性直到被释放出来。也可作为一种过热剂，在理疗方面，高强度激光的照射，能使金纳米棒吸收光并将其转成热，所产生的局部过高热量能直接将病患组织杀死。

技术参数：

粒径范围：10-50 nm
长短轴比在1.4-17.5范围，可覆盖从550 nm 到1400 nm的SPR峰位
均一度：CV%<10%
pH稳定性：4-9
具有高度的稳定性，可均匀分散而无沉降
储存条件：避光， 4°C 保存，切勿冷冻

质量控制：
产品质量控制过程严格遵循NIST提供的流程。

UV-Vis：消光性能，浓度
NIR：近红外消光性能，浓度
DLS：Zeta点位
ICP-MS：质量
TEM：粒径

CTAB/Citrate修饰的金纳米棒

Cat#	Diameter (nm)	Length (nm)	SPR (nm)	Optical Density (AU)	Wt. Conc (μg/mL)	NPs/mL	Unite Size
BR-10-2100	10	175	2100	1	35	1.35E+11	25 mL
BR-10-1400	10	102	1400	1	35	2.34E+11	25 mL
BR-10-1200	10	81	1200	1	35	2.96E+11	25 mL
BR-10-1064	10	67	1064	1	35	3.63E+11	25 mL
BR-10-980	10	59	980	1	35	4.19E+11	25 mL
BR-10-900	10	50	900	1	35	4.93E+11	25 mL
BR-10-850	10	45	850	1	35	5.55E+11	25 mL
BR-10-808	10	41	808	1	35	6.20E+11	25 mL
BR-10-780	10	38	780	1	35	6.73E+12	25 mL
BR-10-750	10	35	750	1	35	7.40E+12	25 mL
BR-10-650	10	24	650	1	35	1.11E+12	25 mL
BR-10-600	10	19	600	1	35	1.48E+12	25 mL
BR-25-1400	25	245	1400	1	50	2.23E+10	25 mL
BR-25-1064	25	137	1064	1	50	4.11E+10	25 mL
BR-25-980	25	119	980	1	50	4.78E+10	25 mL
BR-25-950	25	102	950	1	50	5.64E+10	25 mL
BR-25-900	25	96	900	1	50	6.03E+10	25 mL
BR-25-850	25	93	850	1	50	6.24E+10	25 mL
BR-25-808	25	90	808	1	50	6.47E+10	25 mL
BR-25-780	25	87	780	1	50	6.72E+10	25 mL
BR-25-750	25	85	750	1	50	6.89E+10	25 mL
BR-25-700	25	75	700	1	50	7.93E+10	25 mL
BR-25-650	25	51	650	1	50	8.43E+10	25 mL
BR-25-600	25	34	600	1	50	1.09E+11	25 mL
BR-25-550	25	100	550	1	50	2.03E+11	25 mL
BR-40-850	40	148	850	1	50	1.53E+10	25 mL
BR-40-808	40	134	808	1	50	1.71E+10	25 mL
BR-40-780	40	124	780	1	50	1.87E+10	25 mL
BR-40-750	40	112	750	1	50	2.09E+10	25 mL
BR-40-700	40	92	700	1	50	2.62E+10	25 mL
BR-40-650	40	80	650	1	50	3.10E+10	25 mL
BR-40-600	40	68	600	1	50	3.78E+10	25 mL
BR-40-550	40	60	550	1	50	4.42E+10	25 mL
BR-50-800	50	145	800	1	50	1.03E+10	25 mL
BR-50-700	50	110	700	1	50	1.42E+10	25 mL
BR-50-600	50	100	600	1	50	1.59E+10	25 mL

功能性金纳米棒
Protein A Conjugated Gold Nanorods

Cat#	Diameter (nm)	Length (nm)	SPR (nm)	Ligand	Optical Density (AU)	Wt. Conc (mg/mL)	NPs/mL	Unite Size
RCA-10-1064	10	67	1064	Protein A	50	1.75	1.81E+13	1 mL
RCA-10-980	10	59	980	Protein A	50	1.75	2.09E+13	1 mL
RCA-10-900	10	50	900	Protein A	50	1.75	2.47E+13	1 mL
RCA-10-850	10	45	850	Protein A	50	1.75	2.78E+13	1 mL
RCA-10-808	10	41	808	Protein A	50	1.75	3.1E+13	1 mL
RCA-10-780	10	38	780	Protein A	50	1.75	3.36E+13	1 mL
RCA-10-750	10	35	750	Protein A	50	1.75	3.7E+13	1 mL
RCA-10-700	10	29	700	Protein A	50	1.75	4.44E+13	1 mL
RCA-25-980	25	146	980	Protein A	50	2.5	1.91E+12	1 mL
RCA-25-850	25	113	850	Protein A	50	2.5	2.54E+12	1 mL
RCA-25-808	25	102	808	Protein A	50	2.5	2.83E+12	1 mL
RCA-25-780	25	94	780	Protein A	50	2.5	3.08E+12	1 mL
RCA-25-750	25	86	750	Protein A	50	2.5	3.38E+12	1 mL
RCA-25-700	25	73	700	Protein A	50	2.5	4.06E+12	1 mL
RCA-25-650	25	60	650	Protein A	50	2.5	5.07E+12	1 mL
RCA-25-600	25	47	600	Protein A	50	2.5	6.77E+12	1 mL
RCA-25-550	25	34	550	Protein A	50	2.5	1.01E+13	1 mL
RCA-40-750	40	138	750	Protein A	50	2.5	8.26E+11	1 mL
RCA-40-700	40	118	700	Protein A	50	2.5	9.91E+11	1 mL
RCA-40-650	40	97	650	Protein A	50	2.5	1.24E+12	1 mL
RCA-40-600	40	76	600	Protein A	50	2.5	1.65E+12	1 mL
RCA-40-550	40	55	550	Protein A	50	2.5	2.48E+12	1 mL
RCA-50-700	50	147	700	Protein A	50	2.5	5.07E+11	1 mL

Streptavidin Conjugated Gold Nanorods

Cat#	Diameter (nm)	Length (nm)	SPR (nm)	Ligand	Optical Density (AU)	Wt. Conc (mg/mL)	NPs/mL	Unite Size
RCS-10-1064	10	67	1064	Streptavidin	50	1.75	1.81E+13	1 mL
RCS-10-980	10	59	980	Streptavidin	50	1.75	2.09E+13	1 mL
RCS-10-900	10	50	900	Streptavidin	50	1.75	2.47E+13	1 mL
RCS-10-850	10	45	850	Streptavidin	50	1.75	2.78E+13	1 mL
RCS-10-808	10	41	808	Streptavidin	50	1.75	3.1E+13	1 mL
RCS-10-780	10	38	780	Streptavidin	50	1.75	3.36E+13	1 mL
RCS-10-750	10	35	750	Streptavidin	50	1.75	3.7E+13	1 mL
RCS-10-700	10	29	700	Streptavidin	50	1.75	4.44E+13	1 mL
RCS-25-980	25	146	980	Streptavidin	50	2.5	1.91E+12	1 mL
RCS-25-850	25	113	850	Streptavidin	50	2.5	2.54E+12	1 mL
RCS-25-808	25	90	808	Streptavidin	50	2.5	3.24E+12	1 mL
RCS-25-780	25	94	780	Streptavidin	50	2.5	3.08E+12	1 mL
RCS-25-750	25	86	750	Streptavidin	50	2.5	3.38E+12	1 mL
RCS-25-700	25	73	700	Streptavidin	50	2.5	4.06E+12	1 mL
RCS-25-650	25	71	650	Streptavidin	50	2.5	4.22E+12	1 mL
RCS-25-600	25	47	600	Streptavidin	50	2.5	6.77E+12	1 mL
RCS-25-550	25	34	550	Streptavidin	50	2.5	1.01E+13	1 mL
RCS-40-750	40	138	750	Streptavidin	50	2.5	8.26E+11	1 mL
RCS-40-700	40	118	700	Streptavidin	50	2.5	9.91E+11	1 mL
RCS-40-650	40	97	650	Streptavidin	50	2.5	1.24E+12	1 mL
RCS-40-600	40	76	600	Streptavidin	50	2.5	1.65E+12	1 mL
RCS-40-550	40	55	550	Streptavidin	50	2.5	2.48E+12	1 mL
RCS-50-700	50	147	700	Streptavidin	50	2.5	5.07E+11	1 mL

Biotin Conjugated Gold Nanorods

Cat#	Diameter (nm)	Length (nm)	SPR (nm)	Ligand	Optical Density (AU)	Wt. Conc (mg/mL)	NPs/mL	Unite Size
RFB-10-980	10	59	980	Biotin	50	1.75	2.09E+13	1 mL
RFB-10-900	10	50	900	Biotin	50	1.75	2.47E+13	1 mL
RFB-10-850	10	45	850	Biotin	50	1.75	2.78E+13	1 mL
RFB-10-808	10	41	808	Biotin	50	1.75	3.1E+13	1 mL
RFB-10-780	10	38	780	Biotin	50	1.75	3.36E+13	1 mL
RFB-10-750	10	35	750	Biotin	50	1.75	3.7E+13	1 mL
RFB-10-700	10	29	700	Biotin	50	1.75	4.44E+13	1 mL
RFB-25-980	25	146	980	Biotin	50	2.5	1.91E+12	1 mL
RFB-25-850	25	113	850	Biotin	50	2.5	2.54E+12	1 mL
RFB-25-808	25	102	808	Biotin	50	2.5	2.83E+12	1 mL
RFB-25-780	25	94	780	Biotin	50	2.5	3.08E+12	1 mL
RFB-25-750	25	86	750	Biotin	50	2.5	3.38E+12	1 mL
RFB-25-700	25	73	700	Biotin	50	2.5	4.06E+12	1 mL
RFB-25-650	25	60	650	Biotin	50	2.5	5.07E+12	1 mL
RFB-25-600	25	47	600	Biotin	50	2.5	6.77E+12	1 mL
RFB-25-550	25	34	550	Biotin	50	2.5	1.01E+13	1 mL
RFB-40-750	40	138	750	Biotin	50	2.5	8.26E+11	1 mL
RFB-40-700	40	118	700	Biotin	50	2.5	9.91E+11	1 mL
RFB-40-650	40	97	650	Biotin	50	2.5	1.24E+12	1 mL
RFB-40-600	40	76	600	Biotin	50	2.5	1.65E+12	1 mL
RFB-40-550	40	55	550	Biotin	50	2.5	2.48E+12	1 mL
RFB-50-700	50	147	700	Biotin	50	2.5	5.07E+11	1 mL

Carboxyl Gold Nanorods

Cat#	Diameter (nm)	Length (nm)	SPR (nm)	Ligand	Optical Density (AU)	Wt. Conc (mg/mL)	NPs/mL	Unite Size
RFC-10-1064	10	67	1064	Carboxyl	50	1.75	1.81E+13	1 mL
RFC-10-980	10	59	980	Carboxyl	50	1.75	2.09E+13	1 mL
RFC-10-900	10	50	900	Carboxyl	50	1.75	2.47E+13	1 mL
RFC-10-850	10	45	850	Carboxyl	50	1.75	2.78E+13	1 mL
RFC-10-808	10	41	808	Carboxyl	50	1.75	3.1E+13	1 mL
RFC-10-780	10	38	780	Carboxyl	50	1.75	3.36E+13	1 mL
RFC-10-750	10	35	750	Carboxyl	50	1.75	3.7E+13	1 mL
RFC-10-700	10	29	700	Carboxyl	50	1.75	4.44E+13	1 mL
RFC-25-980	25	146	980	Carboxyl	50	2.5	1.91E+12	1 mL
RFC-25-850	25	113	850	Carboxyl	50	2.5	2.54E+12	1 mL
RFC-25-808	25	102	808	Carboxyl	50	2.5	2.83E+12	1 mL
RFC-25-780	25	94	780	Carboxyl	50	2.5	3.08E+12	1 mL
RFC-25-750	25	86	750	Carboxyl	50	2.5	3.38E+12	1 mL
RFC-25-700	25	73	700	Carboxyl	50	2.5	4.06E+12	1 mL
RFC-25-650	25	60	650	Carboxyl	50	2.5	5.07E+12	1 mL
RFC-25-600	25	47	600	Carboxyl	50	2.5	6.77E+12	1 mL
RFC-25-550	25	34	550	Carboxyl	50	2.5	1.01E+13	1 mL
RFC-40-750	40	138	750	Carboxyl	50	2.5	8.26E+11	1 mL
RFC-40-700	40	118	700	Carboxyl	50	2.5	9.91E+11	1 mL
RFC-40-650	40	97	650	Carboxyl	50	2.5	1.24E+12	1 mL
RFC-40-600	40	76	600	Carboxyl	50	2.5	1.65E+12	1 mL
RFC-40-550	40	55	550	Carboxyl	50	2.5	2.48E+12	1 mL
RFC-50-700	50	147	700	Carboxyl	50	2.5	5.07E+11	1 mL

Amine Gold Nanorods

Cat#	Diameter (nm)	Length (nm)	SPR (nm)	Ligand	Optical Density (AU)	Wt. Conc (mg/mL)	NPs/mL	Unite Size
RFA-10-1064	10	67	1064	Amine	50	1.75	1.81E+13	1 mL
RFA-10-980	10	59	980	Amine	50	1.75	2.09E+13	1 mL
RFA-10-900	10	50	900	Amine	50	1.75	2.47E+13	1 mL
RFA-10-850	10	45	850	Amine	50	1.75	2.78E+13	1 mL
RFA-10-808	10	41	808	Amine	50	1.75	3.1E+13	1 mL
RFA-10-780	10	38	780	Amine	50	1.75	3.36E+13	1 mL
RFA-10-750	10	35	750	Amine	50	1.75	3.7E+13	1 mL
RFA-10-700	10	29	700	Amine	50	1.75	4.44E+13	1 mL
RFA-25-980	25	146	980	Amine	50	2.5	1.91E+12	1 mL
RFA-25-850	25	113	850	Amine	50	2.5	2.54E+12	1 mL
RFA-25-808	25	102	808	Amine	50	2.5	2.83E+12	1 mL
RFA-25-780	25	94	780	Amine	50	2.5	3.08E+12	1 mL
RFA-25-750	25	86	750	Amine	50	2.5	3.38E+12	1 mL
RFA-25-700	25	73	700	Amine	50	2.5	4.06E+12	1 mL
RFA-25-650	25	60	650	Amine	50	2.5	5.07E+12	1 mL
RFA-25-600	25	47	600	Amine	50	2.5	6.77E+12	1 mL
RFA-25-550	25	34	550	Amine	50	2.5	1.01E+13	1 mL
RFA-40-750	40	138	750	Amine	50	2.5	8.26E+11	1 mL
RFA-40-700	40	118	700	Amine	50	2.5	9.91E+11	1 mL
RFA-40-650	40	97	650	Amine	50	2.5	1.24E+12	1 mL
RFA-40-600	40	76	600	Amine	50	2.5	1.65E+12	1 mL
RFA-40-550	40	55	550	Amine	50	2.5	2.48E+12	1 mL
RFA-50-700	50	147	700	Amine	50	2.5	5.07E+11	1 mL

NHS Gold Nanorods

Cat#	Diameter (nm)	Length (nm)	SPR (nm)	Ligand	Optical Density (AU)	Wt. Conc (mg/mL)	NPs/mL	Unite Size
RFN-10-1064	10	67	1064	NHS	50	1.75	1.81E+13	1 mL
RFN-10-980	10	59	980	NHS	50	1.75	2.09E+13	1 mL
RFN-10-900	10	50	900	NHS	50	1.75	2.47E+13	1 mL
RFN-10-850	10	45	850	NHS	50	1.75	2.78E+13	1 mL
RFN-10-808	10	41	808	NHS	50	1.75	3.1E+13	1 mL
RFN-10-780	10	38	780	NHS	50	1.75	3.36E+13	1 mL
RFN-10-750	10	35	750	NHS	50	1.75	3.7E+13	1 mL
RFN-10-700	10	29	700	NHS	50	1.75	4.44E+13	1 mL
RFN-25-980	25	146	980	NHS	50	2.5	1.91E+12	1 mL
RFN-25-850	25	113	850	NHS	50	2.5	2.54E+12	1 mL
RFN-25-808	25	102	808	NHS	50	2.5	2.83E+12	1 mL
RFN-25-780	25	94	780	NHS	50	2.5	3.08E+12	1 mL
RFN-25-750	25	86	750	NHS	50	2.5	3.38E+12	1 mL
RFN-25-700	25	73	700	NHS	50	2.5	4.06E+12	1 mL
RFN-25-650	25	60	650	NHS	50	2.5	5.07E+12	1 mL
RFN-25-600	25	47	600	NHS	50	2.5	6.77E+12	1 mL
RFN-25-550	25	34	550	NHS	50	2.5	1.01E+13	1 mL
RFN-40-750	40	138	750	NHS	50	2.5	8.26E+11	1 mL
RFN-40-700	40	118	700	NHS	50	2.5	9.91E+11	1 mL
RFN-40-650	40	97	650	NHS	50	2.5	1.24E+12	1 mL
RFN-40-600	40	76	600	NHS	50	2.5	1.65E+12	1 mL
RFN-40-550	40	55	550	NHS	50	2.5	2.48E+12	1 mL
RFN-50-700	50	147	700	NHS	50	2.5	5.07E+11	1 mL

安必奇可提供的金纳米棒包括但不限于上述产品，其他规格可根据客户要求定制，同时可提供抗体偶联定制服务。我们有丰富的科研团队，竭诚为您服务。
